Description

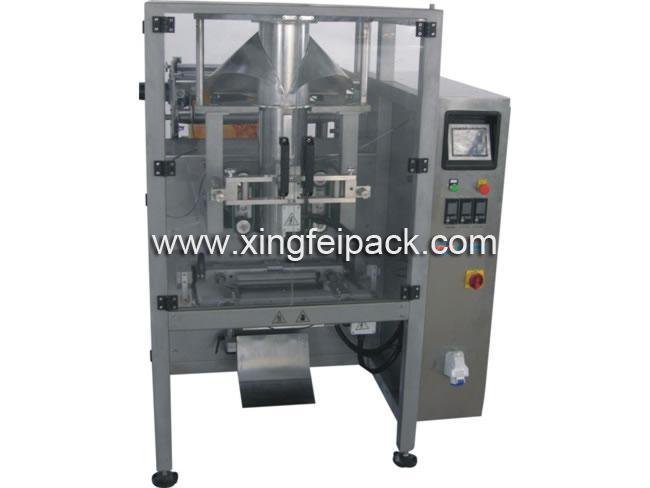

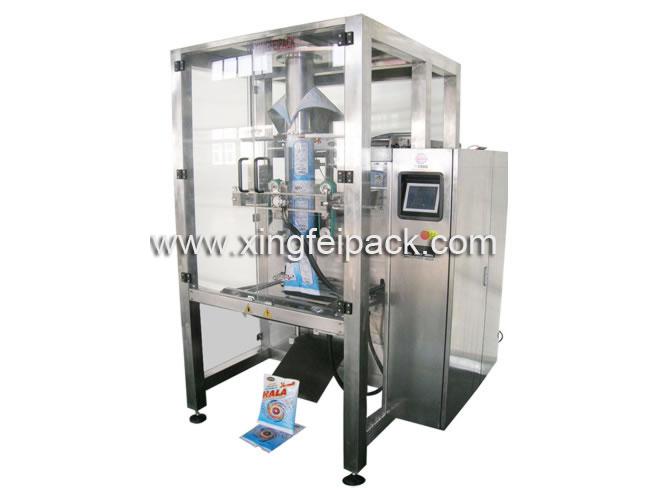

Our melon seeds packaging machine is made up of bag-making, dosing, filling and sealing. And the wrapping material is all kinds of multilayer heat-sealable films.
Character
1. The machine adopts PLC programmable control, color touch screen with human-machine interface, servo motor, cylinder driver, photo sensor and automatic drift correction.
2. Weighing and packing pouch machine can finish the process like bag-making, filling, measuring, sealing, print date, product output in one operation.
Types for Choice of Melon Seeds Packaging in Lantoky:
XFL,
XFL-200,
XFL-250,
XFL-300,
XFL-350
Parameters of Melon Seeds Packaging Machine
|
Model
|
XFL-200
|
XFL-250
|
|
Bag-making Size
|
(L)80 to 300mm, (W)80 to 200mm
|
(L)100 to 330mm, (W)100 to 250mm
|
|
Packing Speed
|
25 to 75 Bags/Min
|
25 to 65 Bags/Min
|
|
Power Supply
|
220V, 50 to 60Hz, 3.0 kW
|
380 to 220V, 50 to 60Hz, 3.6kW
|
|
Compressed air consumption of weighing and packing pouch machine
|
6 to 8 kg/ m2, 0.15 m3/min
|
6 to 8 kg/ m2, 0.15 m3/min
|
|
Weight
|
500 kg
|
700 kg
|
|
Dimension
|
1450 × 1000 × 1700 (mm)
|
1200 × 1450 × 1800 (mm)
|
Packing Samples of Melon Seeds Packaging Machine
