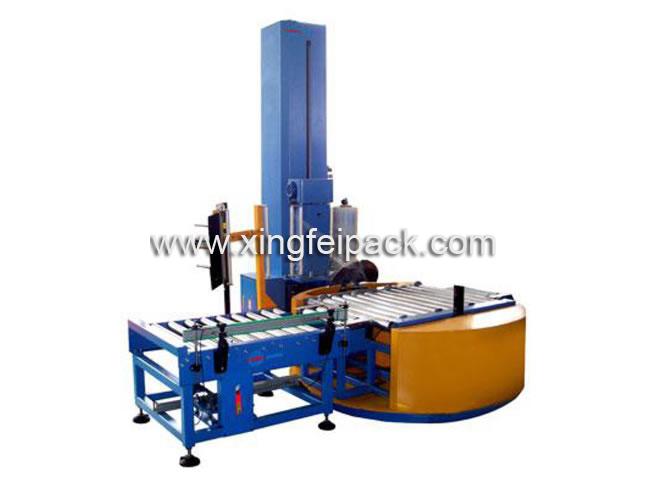

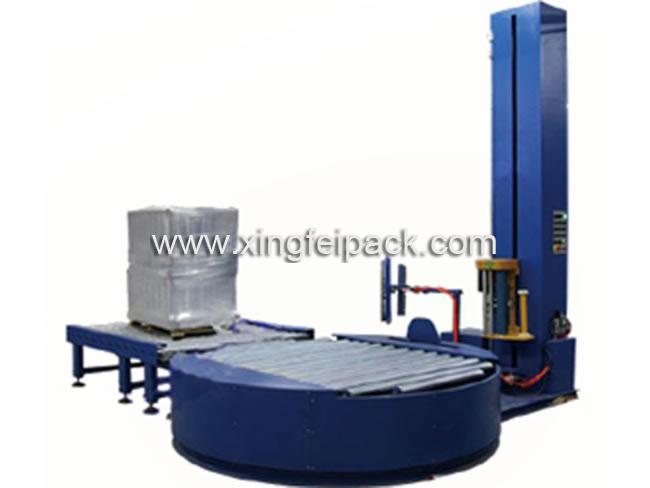

Automatic Pallet Wrapping Machine

Model: XFC-ZC


This XFC-ZC automatic pallet wrapping machine is used for wrapping up the products stacked on the pallet by stretch film, which could prevent the products falling from the pallet during transportation, and protect products from water and dust, easy transporting and storing. Automatic winding machine is widely used for food, beverage, chemistry, hardware, etc.

Features of Automatic Pallet Wrapping Machine

1. Automatic film attaching, cutting, smoothing and discharge after wrapping.
2. Turning speed, wrapping layers, and height could be adjusted
3. PLC control, touch screen operation is easy and clear.
4. Alarming for errors, and error information displays on the screen
5. Alarming and stops for lack of film or products not arrived.

Parameters of Automatic Pallet Wrapping Machine

Wrapping size(L × W) (500 to 1400)mm × (500 to 1200)mm
Packing (MAX) 1800mm or 2400mm
Turntable Speed 0-15rpm (The turning speed is adjustable and the turntable can be placed accurately.)
Turntable Loading(MAX) 2000kg
Turntable 625mm
Conveying Speed 12m/min
Conveying System Roller, chain line or other structure is optional for dynamic conveyor
Film holder of automatic winding machine Film Stretching frame, pre-stretch film at 250%, auto film feeding and its speed is adjustable.
Control System PLC Control, check product’s automatically, wrapping layer and time is adjustable.
Power/Voltage 2.3kW/AC220V
Machine Weight(MAX) 1200kg
Dimension (mm) 3000 × 2000 × 3000
