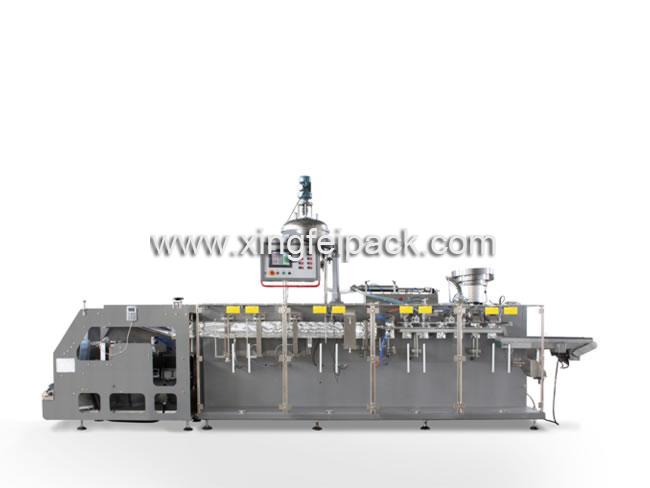

Automatic Horizontal Doypack with Spout Packing Machine

Model: XFS-180SC


XFS-180SC automatic doypack with spout packing machine (spout pouch filling machine) is to fill and cap spouted stand-up pouch with jelly, juice, oil, water, detergent, cosmetics and other liquid or paste alike. The pouch shape is standup pouch, special shaped pouch, hang pouch, zipper doypack, which uses different filling device for different products packaging.


XFS-180SC spout pouch filling machine is suitable for various liquids, such as fruit juice, water, ice lolly, yogurt, jelly, soymilk, skin care, detergent, tea, coffee, water, cooking oil, soymilk, milk, beverage, tomato sauce, liquid soap with nozzles.

Technical Parameter of Automatic Doypack with Spout Packing Machine

Machine dimensions 6600 × 1100 × 1500(L × W × H mm)
Weight 2500kg
Electric supply AC380V, 50Hz
Power 8kW
Air supply 0.5MPa
Air consumption 250NL/min
Packaging capacity 40-60ppm
Wide size 90 mm to 160 mm
High size 110 mm to 260 mm
Max. filling capacity 800ml

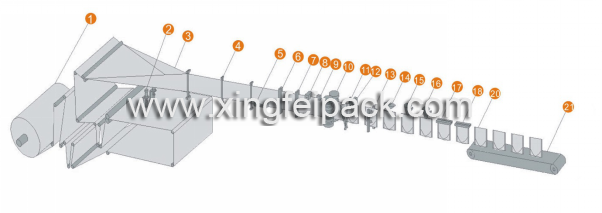

Packing process of Automatic Doypack with Spout Packing Machine

1.Film unwind 6. Vertical1 11. Cutting 16. Filling2 21.Finished product
2.Bottom hole punching 7. Vertical2 12.Pouch catching 17. Spout inserting 22.Outlet
3.Bag forming 8. Tear notch 13.Pouch opening 18.Vibrator
4.Film guide 9.Color scale detection 14. Air flushing 19.Top seal1
5.Bottom seal 10.Servo advance 15. Filling1 20.Top seal 2

Sample Pouch of Automatic Doypack with Spout Packing Machine

Related Products

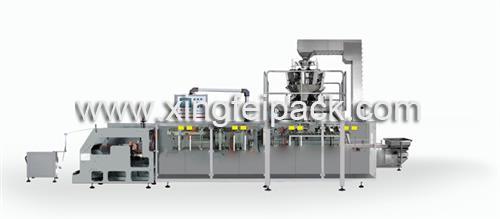

  • Automatic HFFS Standup Pouch Packing Machine with Weigher
