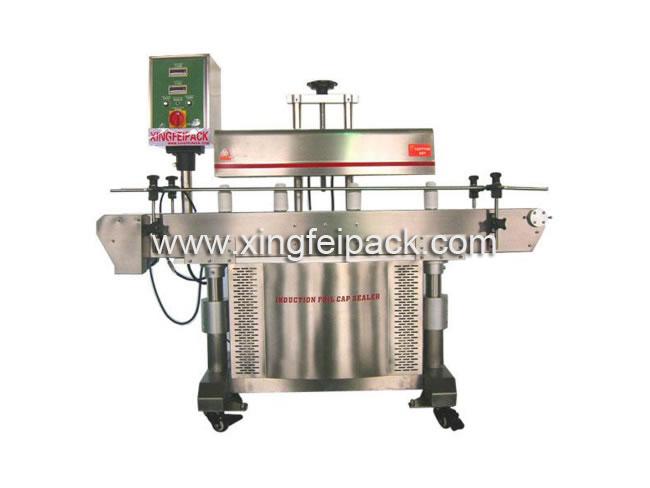

Automatic Electromagnetic Aluminum Foil Induction Sealing Machine

Model: XF-LF


The electromagnetic induction aluminum foil sealing machine works based on the electromagnetic induction principle. It produces swirled and instant heat on the surface of the foil, so that the foil may stick to the bottle mouth and reaches the purpose of sealing bottles with sealed caps.


1. The sealing quality won’t be affected even if there is a small amount residual material left on the bottle mouth.
2. The automatic sealing machine avoids overflowing, moisture-proof, anti-mildew, extending the preservation time of the product in bottle, meets the GMP requirement.
3. Cooling system adopts double water-cooling cycle, to be cooling sensors and power module respectively.
4. Electromagnetic induction aluminum foil sealing machine has self checking function, which can protect itself when the flowing pressure, temperature are over-standard.
5. The power can be adjusted. The machine has the advantage of fast sealing, strong sealing and easily install.
6. It can be matched with bottle-supply machine, bottle-eliminate machine, which can be divided into or combined.


Electromagnetic induction aluminum foil sealing machine is applied to pharmacy, veterinary drugs, insecticides, food, brewing, flavor, cosmetic, lubricants, tourist novelty and cosmetic industries. At the same time, the machine has the function of sealing, anti-counterfeits and anti-theft.

Parameters of Automatic Sealing Machine

Powder supply 220V/50Hz
Power 2 kW
Hole diameter ф20 to 100 mm
Bottle 30 to 260 mm Special one can be customized
Speed 60 to 120pcs/min
Weight 180 kg
Dimension 1800 × 500 × 1300 mm

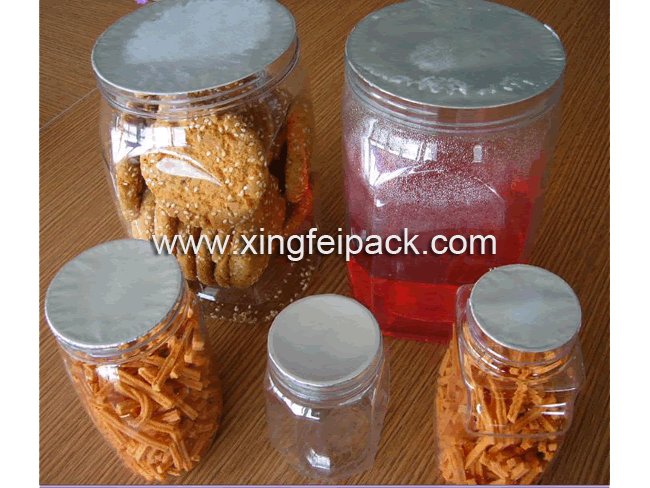

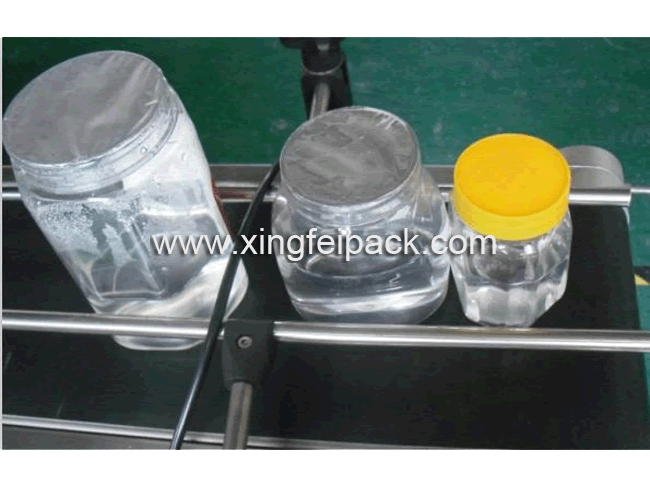

Sealing Samples of Electromagnetic Induction Aluminum Foil Sealing Machine
