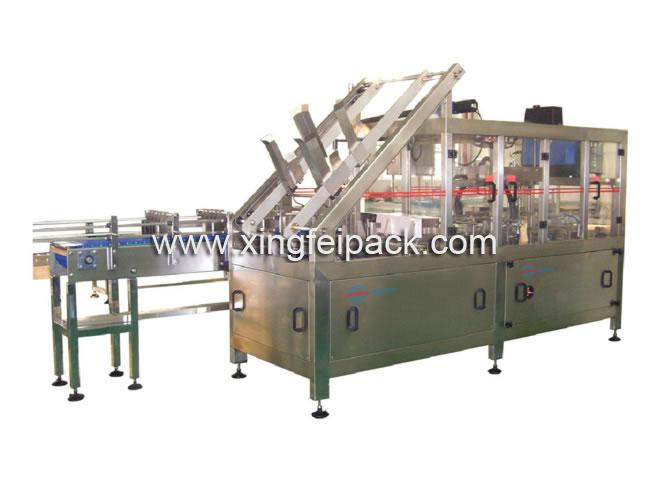

Automatic Paperboard Wrap Cartoning Packaging Machine

Model: XFC-GB


This XFC-GB automatic wrap-around packing machine is a 3 in 1 wrap-around case packer consisting of main packer and product feeding system. The product feeding, carton forming, packing in, carton sealing, finished carton discharge all could be done by this machine automatically.


Automatic wrap-around packing machine is widely used in food, daily and chemistry industries, such as milk powder, beer, beverage, instant noodle, detergent, boxed detergent powder, soap, etc.


1. PLC, touch screen and photocell adopt imported unit with UG certificate. Hot melt gluing machine is from American Nordson.
2. Cylinder and valves have the selection of domestic and imported.
3. Touch screen operation is easy and clear, and production and error information both can be displayed on the screen.
4. The wrap-around case packer is equipped with sensors, which alarms and stops when safety door opens or error occurs.
5. Compact design and stainless steel structure is not only reducing the space but also beautiful.

Parameters of Automatic Wrap-around Packing Machine

Capacity 8 to 12 cartons/min
Applicable carton size Min: 300 × 180 × 100 mm Max: 480 × 400 × 300 mm
Dimension Main packer: 3000 × 1880 × 2150 mm Product feeding: 4000 × 830 × 900 mm
Weight 1900 kg
Power supply 380V/50Hz
Power 6.2kw
Compressed air 0.4-0.6MPa,150L/min
Glue Melting temperature 170℃+10℃
Hot Melt Glue Solid time 1.5s to 2.5s

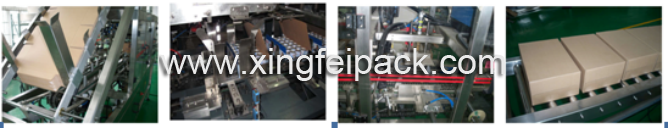

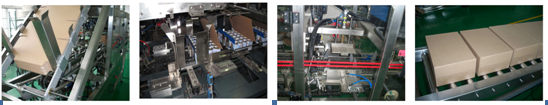

Packing Samples of Wrap-around Case Packer

Related Products
  • Automatic Carton Sealing Machine
    This automatic carton sealing machine adopts imported electrical parts, which is equipped with protection device for the cutter to avoiding incident. ...
  • Automatic Strapping Machine
    XFC-101A automatic strapping machine has wide range for the strapping, which thickness could be between 0.55mm to 1.2mm, straightness is between 15% to 30% per meter, width between 12mm to 14.5mm, furthermore, special requirement can be... ...

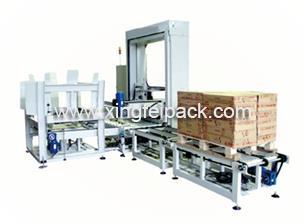

  • Automatic Case Palletizer
