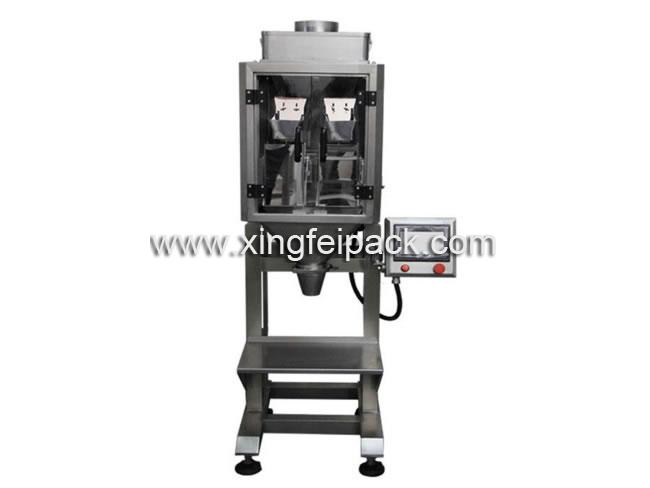

Two Head Weighing and Filling Machine

Model: XF-C2


The two head weighing and filling machine adopts SUS304 stainless steel material, and its contact part use mirror processing to meet the high quality requirements. The product replaces through setting only one parameter of specifications. Military grade modular programmable weighing controller features stable, reliable and highly intelligent.

Features of Two Head Weigher

1. Friendly interface like a key method of operation. All operating parameters are automatically tracking correction.
2. Remote control and networking functions is available. Single package weight, total quantity, product qualification rate, weight deviation statistical functions can be developed upload.
3. The two head weighing and filling machine is not only equipped with vertical, horizontal engine as automatic packaging machines, but also with base as the semi automatic weighing machine, which is flexible.
4. MODBUS communication protocol and networking DCS is used extremely convenient.
5. Recipe data storage is up to 99 sets, and recipe data is used by one-button call.

Parameters of Two Head Weighing and Filling Machine

Weighing method Weighing type
Weighing range 10 to 1800 cc (optimal range 100 to 800g) or customization
Display X0.1
Precision 1/1000 F.S. 2σ
Speed of two head weigher ≤35 bags/min (according to different product)
Powder supply 220 V, 50/60 Hz, 1 phase
Power 300 W
Storage capacity About 22 L
Weight About 100 kg
Dimension (L × W × H) 520 × 630 × 1750 (mm)
